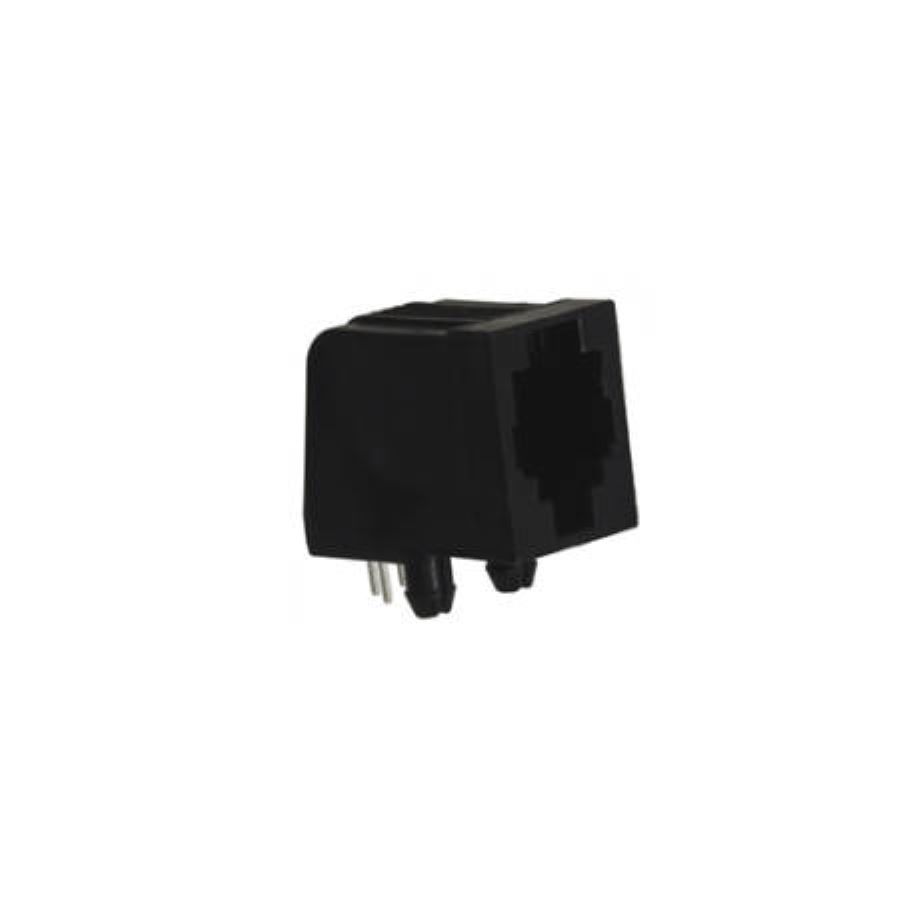

5555980-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5555980-1
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ22 Female Current Rating:1.5 A
| Parameter | Value |
|---|---|
| Length | 11.31 mm |
| Width | 11.31 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 16.26 mm |
| Packaging | Tray |
| Depth | 20.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 1.5 A |
| Max Current Rating | 200 mA |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| Element Configuration | Single |
| Direction(Counting Sequence) | Down |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Gold |
| Keyed | No |
| Number of Positions Loaded | 4 |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 1.27 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Package Quantity | 3328 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ22 |
| Number of Positions/Contacts | 4P4C |
Stock: 1394
Distributors
pcbx
pcbxUnit Price$1.13865
Ext.Price$1.13865
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13865 | $1.13865 |
| 10 | $0.96539 | $9.65390 |
| 25 | $0.90492 | $22.62300 |
| 50 | $0.86163 | $43.08150 |
| 100 | $0.80406 | $80.40600 |
| 300 | $0.75034 | $225.10200 |
| 500 | $0.70021 | $350.10500 |
| 1000 | $0.65341 | $653.41000 |
